soni car wash hose exceeds is 444 type - 3 b (wire braid)
- Specification : exceed Is 444 type - 3 B
- Application : suitable for automobile in service station for water application
- lining: modifie natural & synthetic blends of ubber compound
- Reinforcement : single teel wire braid
- Cover: oil resistant syntheic rubber with excellent abrasion & ozone resistant
- Temperature : service temperature range - 30℃ to +80℃
soni tractor trolley hose (single wire braid)
-
Application : for high pressure application in tractor trolly
- lining: oil resistant syntheic rubber compound
- Reinforcement : single teel wire braid
- Cover: oil, weather & abrasion resistant synthetic rubber compound
- Temperature : -40℃ to +80℃
soni air/water hose exceeds is 444 type - 1 / type -2
- Specification : Exceed Is 444 type -1 / type -2
-
Application : general purpose air & water application in construction , engineering, irrigation 7 Etc.
- lining: modified natural & syntheic blends of rubber compound
- Reinforcement : single / double braid of high tenacity textile yarn
- Cover: modifie natural & syntheic blens of rubber compound with excellent ageing and abrasion resistance.
- Temperature : service temperature range - 30℃ to +80℃
soni heavy duty pnematic tool hose exceeds is 446 type - 2 (wire braid)
- Specification : Exceed Is 446-Type-2
-
Application : Recommended for all type of pneumatic tools industries or compresses air application
- lining: Modified Natual & synthetic blen of rubber compound
- Reinforcement : Single wire braid
- Cover: modified natual & synthetic blens of rubber compound with excellent ageing and abrasion resistant
- Temperature : service temperature range - 30℃ to +80℃

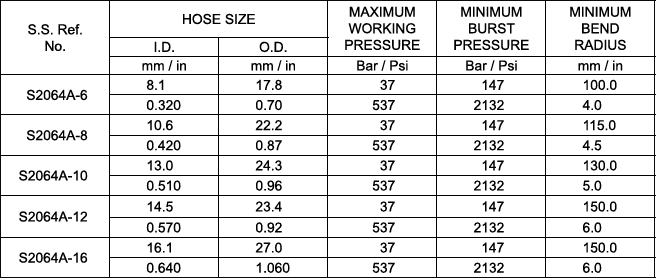

soni automotive a.C. hose sae j 2064 type a (single braid)
- Specification : meets or exceeds SAE J 2064 , TYPE A
- Construction : higly impermeable synthetic rubber tube, single high tensile synthetic yams brai reinforcement and pin pricke outer with heat and ozone resistant synthetic elastomer
- Application : designed for application using refrigerant 134A only.
- Temperature :-40℃ to +125℃ (-40℉ to +257℉)
soni tractor trolley hose (double ire braid)
-
Application : for medium presure application in tractor trolle
- lining: oil resistant systhetic rubber compoun
- reinforcement : double teel wire braid
- cover : oil, weather & abraion synthetic rubber compound
- Temperature :-40℃ to +80℃

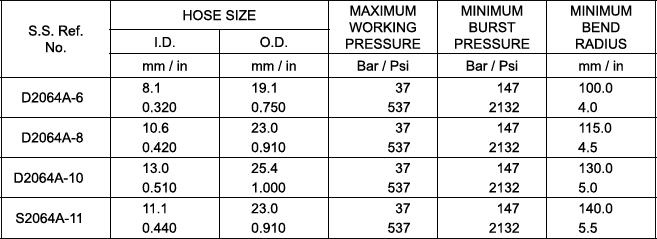

SONI AUTOMOTIVE A. C. HOSE SAE J 2064 TYPE A (DOUBLE BRAID)
- Specification : Meets or exceeds SAE J 2064, TYPE A
- Construction : Highly impermeable synthetic rubber tube, double high tensile synthetic yarns braid reinforcement and pin pricked outer cover with heat and ozone resistant synthetic elastomer.
- Application : Designed for application using refrigerant 134A only.
- Temperature :-40°C to +125°C (-40°F to +257°F)
SONI SINGLE WIRE BRAID AIRDRILL HOSE
- Specification : Exceeds IS 446 - 1980 Type 3
- Application : High Pressure Rock Drill and Pneumatic service in Drilling. Quarries, Construction and General industry.
- Inner Tube: Heat and Oil mist resistant rubber.
- Reinforcement : One high tensile steel wire braid.
- Cover: Synthetic Rubber.
- Temperature : Service Temperature Range -31°F to +212°F (-35°C to +100°C).
SONI 2 WIRE BRAID AIRDRILL HOSE
- Specification : Exceeds IS 446 - 1980 Type 3
-
Application : High Pressure Rock Drill and Pneumatic service in Drilling. Quarries, Construction and General industry.
- Inner Tube: Heat and Oil mist resistant rubber.
- Reinforcement : One high tensile steel wire braid.
- Cover: Synthetic Rubber.
- Temperature : Service Temperature Range -31°F to +212°F (-35°C to +100°C).
SONI PNEUMATIC TOOL HOSE EXCEEDS IS 446 TYPE - 2
- Specification : Exceeds IS 446-Type - 2
-
Application : Recommended for all Types of Pneumatic Tools Industries for Compressed Air Application
- Lining: Modified Natural & Synthetic Blends of Rubber Compound.
- Reinforcement : Single / Double braid of high Tenacity Textile Yarn.
- Cover: Modified Natural & Synthetic Blends of Rubber Compound with excellent Ageing and abrasion Resistance
- Temperature : Service Temperature Range -30°C to +80°C.
SONI BRAIDED ROCK DRILL HOSES
- Specification : SONI IS 446 - 3
- Application : Built to withstand extremely rough handling, this top quality hose is recommended for the most severe service conditions found in open cast mines and quarries. It can be used under conditions where normally only armoured hose would be practicable. It is ideal for use where the jagged, hard and abrasive materials, such as iron ore, granite, quartz or limestone would cut up other types of hoses.
- Features : Designed to meet Indian Standard 911 -1993, this hose has a seamless, non-porous lining which is resistant to the action of vapour and heat. Braided construction, the hose is flexible as a rope and kink-proof. The cover permits it to glide over hard rock surfaces without snagging. It is available in long lengths, thereby eliminating the use of intermediate couplings. Recommended operating temperature range: -40°C to +70°C.
SONI CHEMICAL HOSE EXCEEDS IS 7654 TYPE - 2
- Specification : Exceeds IS 7654 Type - 2
-
Application : Designed for a wide range of chemicals, dilute acids, alkalies & alcoholic materials
- Lining: EPDM rubber compound
- Reinforcement: Double high tenacity synthetic yarn braid
- Cover : EPDM rubber compound with heat, abrasion, ageing and ozone resistance
- Temperature : Service Temperature Range -40°C to +100°C
SONI CHEMICAL HOSE WITH UHMWPE
-
Application : It handles the majority of common industrial chemicals in pressure, gravity flow and also in food and beverages industry.
- Tube : Chemical resistance synthetic tube with UHMWPE film
- Braiding : Double textile braid
- Cover : Chemical resistance synthetic rubber
- Temperature : Service Temperature Range -30°C to +80°C
SONI CHEMICAL HOSE WITH UHMWPE
- Specification :Exceeds IS 447
- Application : For use in workshop
- Construction : Uniform seamless inner tube with reinforcement of synthetic yarn and outer cover is cloth mark finish from tough abrasion resistant blue / red coloured rubber compound

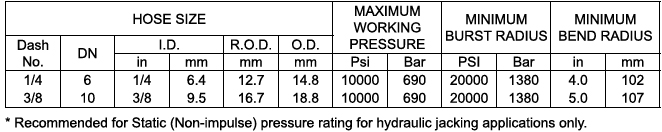

SONI JACK HOSE 10,000 PSI WORKING PRESSURE
-
Construction :
- Tube :Synthetic Oil Resistant Rubber
- Reinforcement :2 High tensile steel wire braids
- Cover :Synthetic Rubber - abrasion ozone and weather resistant
- Application : Hydraulic Jack application used in jacking systems.
- Temperature : -40°C to +50°C.
soni carbon free hose
-
Application : recommene for specialised fumace coolant application in electrical steel industry and other non-conductive application
- lining : white synthetic rubber compound
- Reinforcement : duuble high tenacity synthetic yarn braids
- Cover : green rubber compound with abrasion, ageing and ozone resistance
- Temperature : service temperature range -40°C to +100°C.
soni send / shot blast hose, excees is 5894 type -2 (textile braid)
- Specification : exceeds IS 5894 type - 2
-
Application : for cleaning / blasting, casting metal, stone, concrete surface with wet / dry en or other abrasive material.
- lining : extra thick sealess rubber lining free form mineral filter, with high resillience an abrasion resistence.
- Reinforcement : suitable braids with textile yarn and static wire.
- Cover : highly abraion resistance rubber compound with excellent ozone and eather resistance
- Temperature : service temperature range -40°C to +70°C.
