SONI-SAE 100 R1 - 1 WIRE BRAIDED HYDRAULIC HOSE
- Specification : SONI-SAE 100 R1
- Application : Medium Pressure Hydraulic Oil Lines, Fuel OH, Gasoline, Air and Water.
-
Construction :
- Tube : Black, Oil Resistant Synthetic Rubber,
- Reinforcement : One ply braided High Tensile Steel Wire.
- Cover: Oil Weather and abrasion resistant synthetic Rubber.
- Temperature : -40°F to +212°F, Impulse Cycles : 150,000

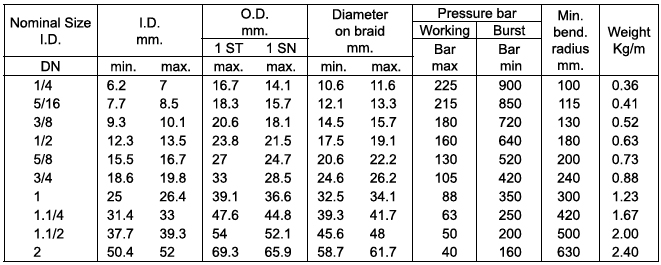

SONI MEDIUM PRESSURE HOSE DIN 20022 / EN 853-1
- Specification :SONI-DIN 20022 1 ST/1 SN/EN 853
-
Construction : for high pressure application in tractor trolly
- Inner Tube: Seamless extruded synthetic rubber of uniform thickness
- Reinforcement : One high tensile steel wire braiding.
- Cover: Anti-abrasive synthetic rubber, resistant of oils, fuels and weathering.
-
Temperature : -40°F to +210°F with intermittent service up to + 250°F.
(-40°C to +100°C with intermittent service upto 120°C). - Application : Hydraulic fluids, lubricating oils, naphtha gasoline.

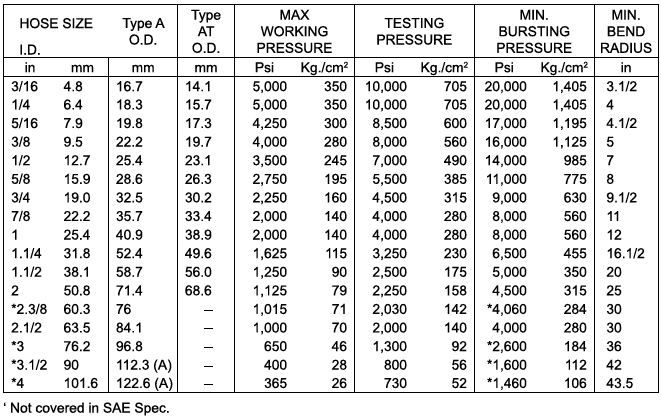

SONI-SAE 100 R2-2 WIRE BRAIDED HYDRAULIC HOSE
- Specification : SONI-SAE 100 R2 AT/EW-8532SIV
- Application : Medium Pressure Hydraulic Oil Lines, Fuel Oil, Gasoline, Air and Water.
-
Construction :
- Tube : Black, Oil Resistant Synthetic Rubber.
- Reinforcement : Two ply braided High Tensile Steel Wire.
- Cover: Oil Weather and abrasion resistant synthetic Rubber.
- Temperature : -40°F to +212°F, Impulse Cycles: 200,000

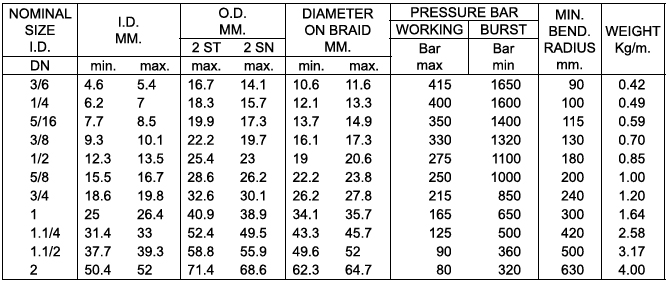

SONI HIGH PRESSURE HOSE
- Specification : SONI-DIN 20022 2ST/2 SN/EN 853
-
Construction :
- Inner Tube: Seamless extruded synthetic rubber of uniform thickness.
- Reinforcement : Two high tensile steel wire braiding.
- Cover: Anti-abrasive synthetic rubber resistant of oils, fuels and weathering.
-
Temperature : -40°F to +100°F with intermittent service upto 120°C).
Exceeds requirements of SAE 100 R2. - Application : Hydraulic fluids, lubricating oils, naphtha gasoline.
soni 1 wire - high temperature hose
- Specification : SONI 1 wire - high temperature hoe
- Application : medium pressure hydraulic oil lines, air and water.
-
Construction :
- Tube : black, oil resistant synthetic rubber,
- Reinforcement : one ply braided high tensile steel wire.
- Cover: oil weather and abrasion resistant synthetic rubber.
- Temperature : -25°F to +135°F.
soni 2 wire - high temperature hose
- Specification : SONI 2 wire - high temperature hoe
- Application : medium pressure hydraulic oil lines, air and water.
-
Construction :
- Tube : black, oil resistant synthetic rubber,
- Reinforcement : two ply braided high tensile steel wire.
- Cover: oil weather and abrasion resistant synthetic rubber.
- Temperature : -25°F to +135°F.
soni 2 wire - braided super loader hose
- Specification : SONI 2 wire - braided super loader hose
- Application : high pressure hydraulic oil lines, fual oil, gasoline, air and water.
-
Construction :
- Tube : black, oil resistant synthetic rubber,
- Reinforcement : two ply braided high tensile steel wire.
- Cover: oil weather an abrasion resistant synthetic rubber.
- Temperature :-40°C to +100°C occasional use at +120°C
soni bcs- 174 double wire braided hose
- Specification : SONI BCS - 174
-
Construction :
- Tube : black, oil resistant synthetic rubber,
- Reinforcement : two ply braided high tensile steel wire.
- Cover: oil weather and abrasion resistant synthetic rubber.
- Application : high pressure hose for under ground mining equipment and powered roof upport.
-
Approvals :
- DGMS (dhanbad).
- central mine research station, dhanbad for resistance & antistatic text.
- central maching tools institute, bangalore for proof pressure test.
- R&D, digha, pune (ministry of defence) for impulse test
soni-sae 100 r5 1 wire braided hyraulic hose
- Specification : SONI-SAE 100 R5
- Application : Medium pressure hydraulic oil lines, fuel oil, gaoline, air and water.
-
Construction : black, oil resistant synthetic rubber one brai cotton.
- Reinforcement : one braid of high tensile steel wire.
-
Cover: oil and mildew resistant one ply braided cotton cover impregnated ith synthetic rubber.
in case of R5 R same as above but instead o cotton, a synthetic rubber cover i used. - working: impulse cycles: upto 7/8 inch 1,50,000.1.1/8 inch & above. 1,00,000 cycles.
- Temperature : -40°F to +212°F
soni-sae 100 r3 2 rayon braided (non-metallic) hyraulic hose
- Specification : SONI-SAE 100 R3
- Application : hydraulic oil lines, fuel oil, anti-freeze.
-
Construction :
- tube : synthetic rubber
- Reinforcement : two braids high tenacity rayan.
- Cover: oil and abrasion resistant synthetic rubber.
- Temperature : -40°F to +200°F

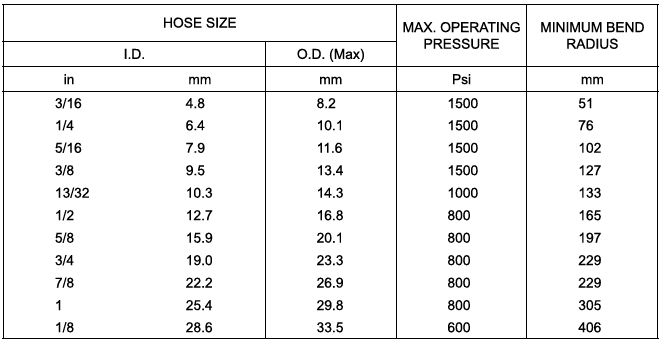

soni-sae 100 r6 one rayon braided low pressure hose
- Specification : SONI-SAE 100 R6
- Application : hydraulic oil lines, fuel oil, anti-freeze solutions nad water.
-
Construction :
- tube : specially compounded synthetic rubber
- Reinforcement : one braids high tenacity rayan.
- Cover: oil and abrasion resistant synthetic rubber.
- Temperature : -40°F to +200°F

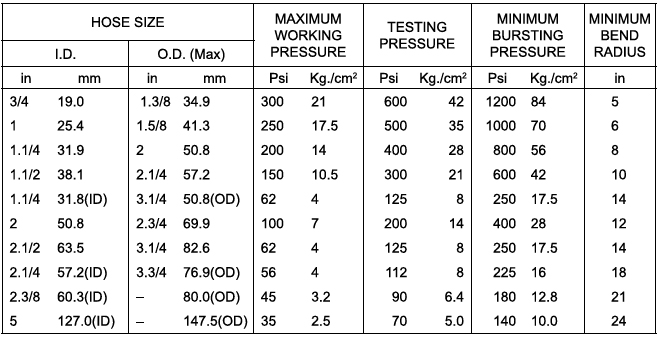

soni-sae 100 r4 two rayon braided hydraulic suction hose
- Specification : SONI-SAE 100 R4
- Application : petroleum base hydraulic oils, gasoline and fuel oil in suction lines or low pressure return lines..
-
Construction :
- tube : synthetic rubber
- Reinforcement : two rayon brais separated by a spiral wire to prevent collapse.
- Cover: oil and abrasion resistant synthetic rubber.
- Temperature : -40°F to +200°F
SONI HIGH TEMP. STEAM HOSE (ONE WIRE BRAIDED)
-
Specification : SONI High Temp 1 Wire
IS 10655 Type III - Application : For use on Hi-temperature Steam.
-
Construction :
- tube : Seamless Synthetic heat resistant Rubber Tube.
- Reinforcement : One ply H.T.S. wire braided.
- Cover: Oil, Weather and abrasion resistant Synthetic black rubber.
- Temperature : Upto to +185°C, for pressure 150 lbs, Psi of Steam.
SONI HIGH TEMP. STEAM HOSE (TWO WIRE BRAIDED)
-
Specification : SONI High Temp 2 Wire
IS 10655 Type IV - Application : For use on Hi-temperature Steam.
-
Construction :
- tube : Seamless Synthetic heat resistant Rubber Tube
- Reinforcement : Two ply H.T.S. wire braided.
- Cover: Oil, Weather and abrasion resistant Synthetic black rubber.
- Temperature : Upto to 185°C and for steam pressure 200 Psi.

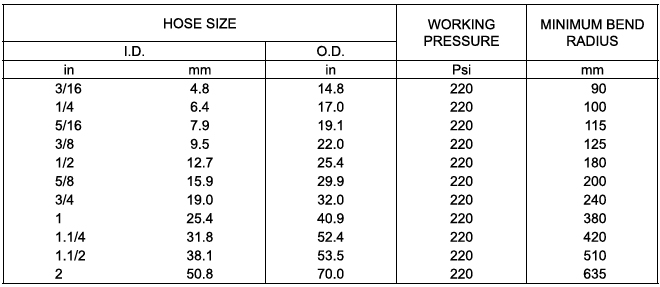

SONI SAE 100 R14 TEFLON HOSE
-
Specification : (P.T.F.E.) Inner Teflon tube.
Reinforcement by single layer of stainless steel wire. -
Application : Diluted or concentrated acids, caustics, hot lacquers, solvents, fuel, oils, oxidising agents, and gases. Generally unaffected by all chemicals (except melted alkaline metals) used in Laundry, Rubber,
Plastics, Chemical & Refrigeration Industries. Maximum utilisation of steam pressure 250 PSI.
- Cover: Oil, Weather and abrasion resistant Synthetic black rubber
- Temperature : Teflon flexible hoses are capable to resisting low and high temperature between -54°C to +204°C for longer period and have an unlimited shelf life.

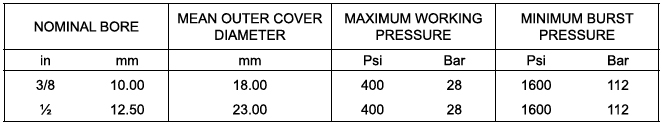

SONI CAR WASH HOSE EXCEEDS IS 444 TYPE-3 B (TEXTILE BRAID)
- Specification : Exceeds IS 444 Type - 3 B
-
Application : Suitable for use in automobile service station for pressurised water application
- lining : modified natural & synthetic blends of rubber compound
- Reinforcement : Single braid of high tenacity synthetic yarn
- Cover : Oil resistant synthetic rubber compound with excellent abrasion & ozone resistant
- Temperature : Service Temperature Range -30°C to +80°C .

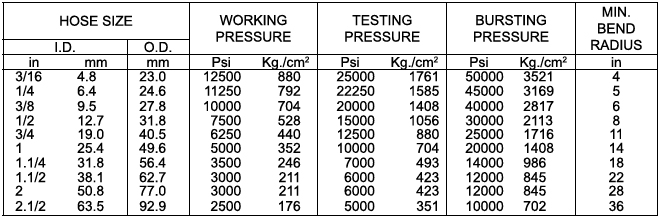

SONI-SAE 100 R11 SUPER HIGH PRESSURE SPIRAL HOSe
- Specification : SONI SAE 100 R11
-
Construction :
- tube : Synthetic rubber. Six spiral Heavy Duty plies of High Tensile Steel wire wrapped in alternating directions and Synthetic Rubber Cover, resistant to oil, weather and abrasion.
- Application : Extra high pressure hydraulic, service petroleum base hydraulic, fluids, water, diesel, fuel and lubricating oils.
- Working : Impulse cycles 400,000 without leakage or other malfunctions.
- Temperature : -40°C to +100°C and tested to min.
- Approvals : R&D Dighe, Pune for impulse test. MIN. HOSE SIZE

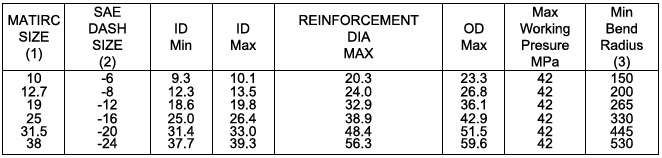

SONI-SAE 100 R15 SUPER HIGH PRESSURE SPIRAL HOSE
- Specification : SONI SAE 100 R15
- Construction :This hose shall consist of an inner tube of oil resistant synthetic rubber, multiple spiral plies of heavy steel wire wrapped in alternating directions and an oil and weather resistant synthetic rubber cover. A ply or braid of suitable material may be used over or within the inner tube or over the wire reinforcement or over both to anchor the synthetic rubber to the wire. This hose shall have the same construction and working pressures of ISO 3862 Type R 15.
SONI HIGH PRESSURE HOSE EN 853-2SC
- Application : High pressure service with tightbends forpetroleum and water-based hydraulic fluids. Excellent impulse performance and flexibility exceeding SAE 100R2 and SAE 100R16 standards. Hose has compact dimensions tighter bend radius than 2SN hose for ease of assembly routing in machinery applications
- Inner Tube : Synthetic Ruleep
- Reinforcement : Two braid of high-tensile steel wire
- Cover : Synthitic Peea
- Temperature : -40°F to 212°F (-40°C to 100°C) Standards

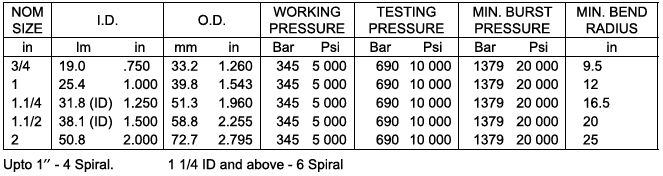

SONI-SAE 100 R13 SUPER HIGH PRESSURE SPIRAL HOSE
- Specification : SONI SAE 100 R13
-
Construction :
- tube : Black oil resistant synthetic rubber
- Reinforcement : Multiple high tensile wire spirals
- Cover : Black, oil resistant synthetic rubber
- Working : Impulse tested at 5,00,000 cycles
- Temperature : -40°Сto +121°C
- Approvals : R&D Dighe, Pune for impulse test Upto 1" - 4 Spiral. 1.1/4 and above - 6 Spiral NOM
SONI DIN 20023 - 4SP / EN 856 4SP SPIRAL HOSE
- Specification : SONI DIN 20023 4SP/EN 856 4SP
-
Construction :
- tube : Black oil resistant synthetic rubber
- Reinforcement : 4 high tensile wire spirals
- Cover : Black, oil resistant synthetic rubber
- Working : Impulse tested at 4,00,000 cycles
- Temperature : -40°Сto +121°C
- Approvals : R&D Dighe, Pune for impulse test

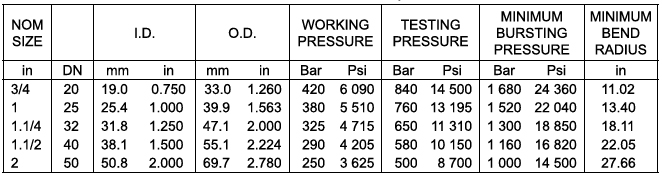

SONI DIN 20023 - 4SH/EN 856 4SH SPIRAL HOSE
- Specification : SONI DIN 20023 - 4SH / EN 856 4SH
-
Construction :
- tube : Black oil resistant synthetic rubber
- Reinforcement : 4 high tensile wire spirals
- Cover : Black, oil resistant synthetic rubber
- Working : Impulse tested at 4,00,000 cycles
- Temperature : -40°Сto +121°C
-
Approvals : R&D Dighe, Pune for impulse test.
Meets & exceeds SAE-100 R-10 in an aspects
Download the Soni Industrial Hose Catalogue now
